I reset the silly thing and setup samba with username & password ...the way I normally would run it.
# # # #
mrjcd@Deb:~$ telnet 192.168.1.1
Trying 192.168.1.1...
Connected to 192.168.1.1.
Escape character is '^]'.
DD-WRT v3.0-r41986 std (c) 2020 NewMedia-NET GmbH
Release: 01/14/20
Board: Linksys EA8500
DD-WRT login: root
Password:
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.1 (2020-01-14 01:15:07 +03) built-in shell (ash)
root@DD-WRT:~# ps
PID USER VSZ STAT COMMAND
1 root 1028 S /sbin/init
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u4:0]
7 root 0 SW [rcu_sched]
8 root 0 SW [rcu_bh]
9 root 0 SW [migration/0]
10 root 0 SW< [lru-add-drain]
11 root 0 SW [cpuhp/0]
12 root 0 SW [cpuhp/1]
13 root 0 SW [migration/1]
14 root 0 SW [ksoftirqd/1]
15 root 0 SW [kworker/1:0]
16 root 0 SW< [kworker/1:0H]
17 root 0 SW [oom_reaper]
18 root 0 SW< [writeback]
19 root 0 SW [kcompactd0]
20 root 0 SW< [crypto]
21 root 0 SW< [bioset]
22 root 0 SW< [kblockd]
23 root 0 SW< [watchdogd]
25 root 0 SW [kworker/0:1]
42 root 0 SW [kswapd0]
43 root 0 SW< [vmstat]
69 root 0 SW< [cryptodev_queue]
70 root 0 SW [kworker/u4:1]
72 root 0 SW< [bioset]
73 root 0 SW< [bioset]
74 root 0 SW< [bioset]
75 root 0 SW< [bioset]
76 root 0 SW< [bioset]
77 root 0 SW< [bioset]
78 root 0 SW [kworker/1:1]
79 root 0 SW< [bioset]
80 root 0 SW< [bioset]
81 root 0 SW< [bioset]
82 root 0 SW< [bioset]
83 root 0 SW< [bioset]
84 root 0 SW< [bioset]
85 root 0 SW< [bioset]
86 root 0 SW< [bioset]
87 root 0 SW< [bioset]
88 root 0 SW< [bioset]
89 root 0 SW< [bioset]
90 root 0 SW< [bioset]
91 root 0 SW< [bioset]
96 root 0 SW< [kworker/0:1H]
97 root 0 SW< [kworker/1:1H]
734 root 728 S /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules --persistent
738 root 776 S /sbin/mstpd
746 root 1756 S watchdog
748 root 0 SW [kworker/1:2]
749 root 0 SW [kworker/0:2]
776 root 0 SW< [cfg80211]
783 root 0 SW< [ath10k_wq]
784 root 0 SW< [ath10k_aux_wq]
785 root 0 SW [kworker/u4:2]
787 root 0 SW< [ath10k_wq]
788 root 0 SW< [ath10k_aux_wq]
907 root 0 SW< [ata_sff]
912 root 0 SW [scsi_eh_0]
913 root 0 SW< [scsi_tmf_0]
915 root 0 SW [scsi_eh_1]
916 root 0 SW< [scsi_tmf_1]
917 root 0 SW [usb-storage]
944 root 0 SW< [bioset]
983 root 0 SW [jbd2/sda-8]
984 root 0 SW< [ext4-rsv-conver]
1060 root 4092 S hostapd -B -P /var/run/ath0_hostapd.pid /tmp/ath0_hostap.conf
1085 root 4072 S hostapd -B -P /var/run/ath1_hostapd.pid /tmp/ath1_hostap.conf
1161 root 1332 R telnetd
1231 root 828 S usmbd -c /tmp/smb.conf -u /tmp/smb.db
1232 root 856 S usmbd -c /tmp/smb.conf -u /tmp/smb.db
1234 root 0 SW [ksmbd-ath1]
1235 root 0 SW [ksmbd-ath0]
1236 root 0 SW [ksmbd-br0]
1237 root 0 SW [ksmbd-vlan2]
1238 root 0 SW [ksmbd-vlan1]
1239 root 0 SW [ksmbd-teql0]
1240 root 0 SW [ksmbd-eth1]
1241 root 0 SW [ksmbd-eth0]
1242 root 0 SW [ksmbd-lo]
1280 root 1756 S ttraff
1293 root 1428 S resetbutton
1295 root 2616 S startservice_f modules_wait
1365 root 4792 S httpd -n -p 80
1514 root 1324 S udhcpc -i vlan2 -p /var/run/udhcpc.pid -s /tmp/udhcpc -O routes -O msstaticroutes -O staticroutes
1611 root 704 S cron
1617 root 1732 S dnsmasq -u root -g root --conf-file=/tmp/dnsmasq.conf
1622 root 1716 S wland
1623 root 1756 S process_monitor
1721 root 1324 S -sh
1753 root 1324 R ps
root@DD-WRT:~# cat /tmp/smb.conf
[global]
log level = 1
netbios name = DD-WRT
server string =
syslog = 10
encrypt passwords = true
preferred master = yes
use sendfile = yes
aio read size = 2048
aio write size = 2048
large readwrite = yes
security = user
mangled names = no
max stat cache size = 64
workgroup =
bind interfaces only = yes
guest account = nobody
map to guest = Bad User
smb passwd file = /var/samba/smbpasswd
private dir = /var/samba
passdb backend = smbpasswd
log file = /var/smbd.log
max log size = 1000
socket options = TCP_NODELAY IPTOS_LOWDELAY SO_SNDBUF=262144 SO_RCVBUF=262144
read raw = yes
write raw = yes
oplocks = yes
max xmit = 65536
dead time = 15
getwd cache = yes
lpq cache time = 30
min protocol = SMB2
max protocol = SMB2
printing = none
load printers = No
usershare allow guests = Yes
[damnu]
comment = damnu
path = /mnt/sda/
read only = no
guest ok = no
valid users = mrjcd
force user = root
# # # #
smb passwd file = /var/samba/smbpasswd --- that's bullshit cause it is an empty file :'(
# # # #
root@DD-WRT:~# cat /var/samba/smbpasswd
root@DD-WRT:~# cd /var/samba/
root@DD-WRT:/tmp/var/samba# ls
smbpasswd
root@DD-WRT:~# cd /mnt/sda/
root@DD-WRT:/tmp/mnt/sda# ls
Debian-Live Lead-Copper lost+found lunbuntu_16.04 old-notes tmp-junk
root@DD-WRT:/tmp/mnt/sda# cd
root@DD-WRT:~#
# # # # #

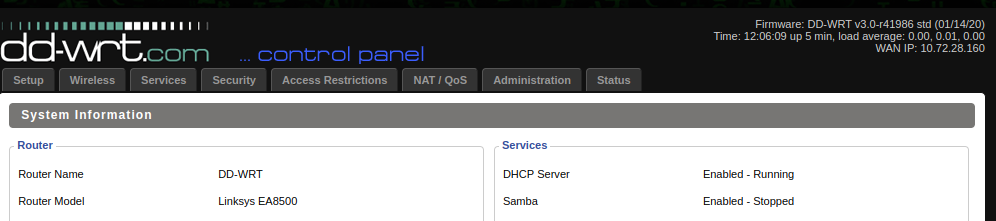

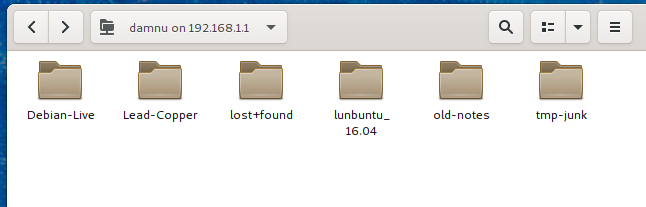

even though the stupid webif says samba is stopped I can still mount it on my Debian desktop at smb://192.168.1.1/
# # # #
# # # #
# # # #

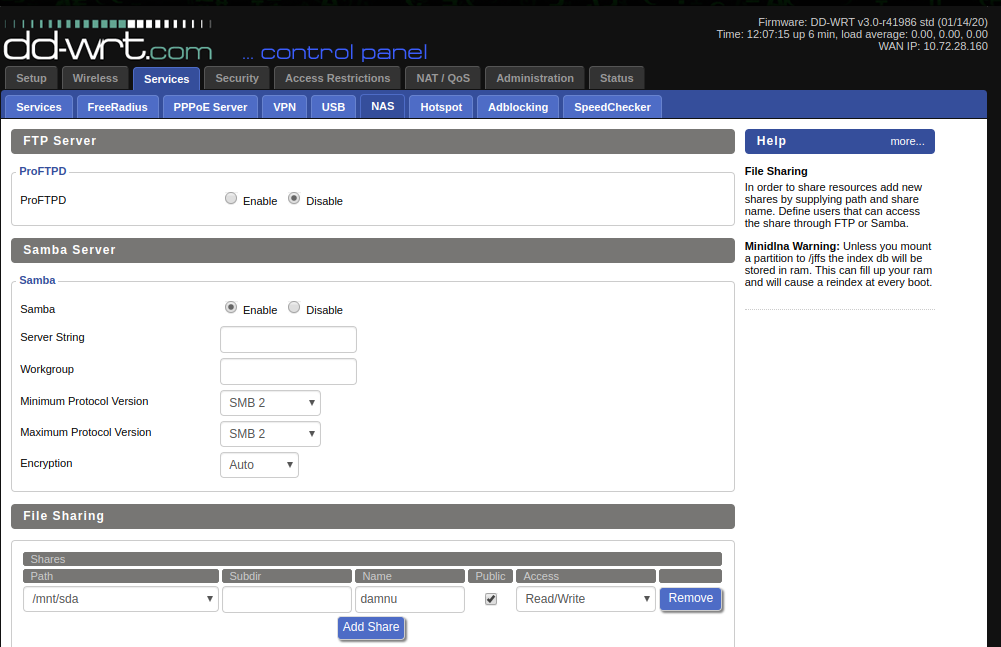

but ONLY if samba is set to 'public' --- NO username or password ...like so --
# # # #
# # # #
root@DD-WRT:~# ubootenv set boot_part 1 && reboot
a_pEnv->crc = d52feed7
crc32 = d52feed7
root@DD-WRT:~# Connection closed by foreign host.
mrjcd@Deb:~$
# # # # #
mrjcd@Deb:~$ telnet 192.168.1.1
Trying 192.168.1.1...
Connected to 192.168.1.1.
Escape character is '^]'.
DD-WRT v3.0-r41892 std (c) 2020 NewMedia-NET GmbH
Release: 01/05/20
Board: Linksys EA8500
DD-WRT login: root
Password:
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.1 (2020-01-05 00:57:52 +03) built-in shell (ash)
root@DD-WRT:~# ps
PID USER VSZ STAT COMMAND
1 root 1032 S /sbin/init
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u4:0]
7 root 0 SW [rcu_sched]
8 root 0 SW [rcu_bh]
9 root 0 SW [migration/0]
10 root 0 SW< [lru-add-drain]
11 root 0 SW [cpuhp/0]
12 root 0 SW [cpuhp/1]
13 root 0 SW [migration/1]
14 root 0 SW [ksoftirqd/1]
15 root 0 SW [kworker/1:0]
16 root 0 SW< [kworker/1:0H]
17 root 0 SW [oom_reaper]
18 root 0 SW< [writeback]
19 root 0 SW [kcompactd0]
20 root 0 SW< [crypto]
21 root 0 SW< [bioset]
22 root 0 SW< [kblockd]
23 root 0 SW< [watchdogd]
25 root 0 SW [kworker/0:1]
42 root 0 SW [kswapd0]
43 root 0 SW< [vmstat]
69 root 0 SW< [cryptodev_queue]
70 root 0 SW [kworker/u4:1]
72 root 0 SW< [bioset]
73 root 0 SW< [bioset]
74 root 0 SW< [bioset]
75 root 0 SW< [bioset]
76 root 0 SW< [bioset]
77 root 0 SW [kworker/1:1]
78 root 0 SW< [bioset]
79 root 0 SW< [bioset]
80 root 0 SW< [bioset]
81 root 0 SW< [bioset]
82 root 0 SW< [bioset]
83 root 0 SW< [bioset]
84 root 0 SW< [bioset]
85 root 0 SW< [bioset]
86 root 0 SW< [bioset]
87 root 0 SW< [bioset]
88 root 0 SW< [bioset]
89 root 0 SW< [bioset]
90 root 0 SW< [bioset]
91 root 0 SW< [bioset]
96 root 0 SW< [kworker/0:1H]
97 root 0 SW< [kworker/1:1H]
734 root 728 S /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules --persistent
738 root 776 S /sbin/mstpd
746 root 1756 S watchdog
748 root 0 SW [kworker/0:2]
774 root 0 SW< [cfg80211]
782 root 0 SW< [ath10k_wq]
783 root 0 SW< [ath10k_aux_wq]
784 root 0 SW [kworker/u4:2]
786 root 0 SW< [ath10k_wq]
787 root 0 SW< [ath10k_aux_wq]
801 root 0 SW [kworker/1:2]
907 root 0 SW< [ata_sff]
912 root 0 SW [scsi_eh_0]
913 root 0 SW< [scsi_tmf_0]
915 root 0 SW [scsi_eh_1]
917 root 0 SW< [scsi_tmf_1]
918 root 0 SW [usb-storage]
944 root 0 SW< [bioset]
983 root 0 SW [jbd2/sda-8]
984 root 0 SW< [ext4-rsv-conver]
1060 root 4092 S hostapd -B -P /var/run/ath0_hostapd.pid /tmp/ath0_hostap.conf
1085 root 4092 S hostapd -B -P /var/run/ath1_hostapd.pid /tmp/ath1_hostap.conf
1164 root 1332 S telnetd
1206 root 2204 S /usr/sbin/smbd -D --configfile=/tmp/smb.conf
1214 root 1988 S /usr/sbin/nmbd -D --configfile=/tmp/smb.conf
1258 root 1756 S ttraff
1271 root 1428 S resetbutton
1343 root 4796 S httpd -n -p 80
1444 root 704 S cron
1508 root 1324 S udhcpc -i vlan2 -p /var/run/udhcpc.pid -s /tmp/udhcpc -O routes -O msstaticroutes -O staticroutes
1538 root 1732 S dnsmasq -u root -g root --conf-file=/tmp/dnsmasq.conf
1543 root 1716 S wland
1544 root 1756 S process_monitor
1685 root 1324 S -sh
1691 root 1324 R ps
root@DD-WRT:~# cat /tmp/smb.conf
[global]
log level = 1
netbios name = DD-WRT
server string =
syslog = 10
encrypt passwords = true
preferred master = yes
use sendfile = yes
aio read size = 2048
aio write size = 2048
large readwrite = yes
security = user
mangled names = no
max stat cache size = 64
workgroup =
bind interfaces only = Yes
guest account = nobody
map to guest = Bad User
smb passwd file = /var/samba/smbpasswd
private dir = /var/samba
passdb backend = smbpasswd
log file = /var/smbd.log
max log size = 1000
socket options = TCP_NODELAY IPTOS_LOWDELAY SO_SNDBUF=262144 SO_RCVBUF=262144
read raw = yes
write raw = yes
oplocks = yes
max xmit = 65536
dead time = 15
getwd cache = yes
lpq cache time = 30
min protocol = SMB2
max protocol = SMB2
printing = none
load printers = No
usershare allow guests = Yes
[damnu]
comment = "damnu"
path = "/mnt/sda/"
read only = No
guest ok = No
valid users = mrjcd
force user = root
root@DD-WRT:~# cat /var/samba/smbpasswd
mrjcd:1000:E9A4C36F64B540B8CED9DC2BA0FB7983:162E829BE112225FEDF856E38E1C65FE:[UX ]:LCT-00000001:
root@DD-WRT:~#
# # # #
r41892 works just like it should
and yea the stupid r41986 works good on WNDR3700v4 & the 160NL :')
# # # #
mrjcd@Deb:~$ ssh root@citadel-switch.mrjcd.com
DD-WRT v3.0-r41986 std (c) 2020 NewMedia-NET GmbH
Release: 01/14/20
Board: Netgear WNDR3700 V4
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.1 (2020-01-14 04:11:58 +04) built-in shell (ash)
root@Citadel-Switch:~# ps
PID USER VSZ STAT COMMAND
1 root 1184 S /sbin/init
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u2:0]
7 root 0 SW< [khelper]
8 root 0 SW< [netns]
9 root 0 SW< [writeback]
73 root 0 SW< [crypto]
75 root 0 SW< [bioset]
77 root 0 SW< [kblockd]
79 root 0 SW [kswapd0]
80 root 0 SW [kworker/0:1]
112 root 0 SW [fsnotify_mark]
255 root 0 SW< [deferwq]
257 root 0 SW [kworker/u2:2]
469 root 940 S /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules --persistent
498 root 1880 S watchdog
556 root 0 SW< [cfg80211]
610 root 0 SW [kworker/0:2]
637 root 0 SW [scsi_eh_0]
638 root 0 SW< [scsi_tmf_0]
639 root 0 SW [usb-storage]
674 root 0 SW< [kworker/0:1H]
797 root 0 SW [jbd2/sda1-8]
798 root 0 SW< [ext4-rsv-conver]
918 root 1396 S syslogd -Z -L
920 root 1396 S klogd
938 root 1232 S dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_host_rsa_key -p 22 -s
965 root 2604 S /usr/sbin/smbd -D --configfile=/tmp/smb.conf
967 root 2384 S /usr/sbin/nmbd -D --configfile=/tmp/smb.conf
1035 root 1836 S wland
1047 root 3176 S /tmp/openvpnserver --config /tmp/openvpn/openvpn.conf --route-up /tmp/openvpn/route-up.sh --route-pre-
1186 root 4604 S httpd -n -p 80
1188 root 912 S cron
1190 root 1564 S resetbutton
1203 root 1880 S process_monitor
1388 root 1300 S dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_host_rsa_key -p 22 -s
1389 root 1396 S -sh
1391 root 1396 R ps
root@Citadel-Switch:~# cat /tmp/smb.conf
[global]
log level = 1
netbios name = Citadel-Switch
server string =
syslog = 10
encrypt passwords = true
preferred master = yes
use sendfile = yes
aio read size = 2048
aio write size = 2048
large readwrite = yes
security = user
mangled names = no
max stat cache size = 64
workgroup =
bind interfaces only = yes
guest account = nobody
map to guest = Bad User
smb passwd file = /var/samba/smbpasswd
private dir = /var/samba
passdb backend = smbpasswd
log file = /var/smbd.log
max log size = 1000
socket options = TCP_NODELAY IPTOS_LOWDELAY SO_SNDBUF=262144 SO_RCVBUF=262144
read raw = yes
write raw = yes
oplocks = yes
max xmit = 65536
dead time = 15
getwd cache = yes
lpq cache time = 30
min protocol = SMB2
max protocol = SMB2
printing = none
load printers = No
usershare allow guests = Yes
[SWITCH]
comment = "SWITCH"
path = "/mnt/sda1/"
read only = no
guest ok = no
valid users = mrjcd
force user = root
root@Citadel-Switch:~# cat /var/samba/smbpasswd
mrjcd:1000:FB234959C0FD6533543B250A1F7B6542:0234139080B72E1F056B6BF6D01F1AFA:[UX ]:LCT-00000001:
root@Citadel-Switch:~# exit
Connection to citadel-switch.mrjcd.com closed.
mrjcd@Deb:~$ ssh root@160nl-switch.mrjcd.com
DD-WRT v3.0-r41986 std (c) 2020 NewMedia-NET GmbH
Release: 01/14/20
Board: Linksys WRT160NL
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.1 (2020-01-14 02:05:16 +04) built-in shell (ash)
root@160nl-switch:~# ps
PID USER VSZ STAT COMMAND
1 root 1180 S /sbin/init
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
7 root 0 SW< [khelper]
8 root 0 SW [kworker/u2:1]
86 root 0 SW< [writeback]
89 root 0 SW< [bioset]
90 root 0 SW< [crypto]
92 root 0 SW< [kblockd]
104 root 0 SW [khubd]
124 root 0 SW [kworker/0:1]
131 root 0 SW [kswapd0]
132 root 0 SW [fsnotify_mark]
236 root 0 SW< [deferwq]
479 root 940 S /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules --persistent
512 root 1860 S watchdog
534 root 0 SW< [cfg80211]
604 root 0 SW [scsi_eh_0]
605 root 0 SW [usb-storage]
640 root 0 SW [kworker/u2:2]
641 root 0 SW< [kworker/0:1H]
829 root 1384 S syslogd -Z -L
832 root 1384 S klogd
839 root 1232 S dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_host_rsa_key -p 22 -s
863 root 2604 S /usr/sbin/smbd -D --configfile=/tmp/smb.conf
866 root 2384 S /usr/sbin/nmbd -D --configfile=/tmp/smb.conf
935 root 1820 S wland
1070 root 912 S cron
1079 root 4448 S httpd -n -p 80
1081 root 1548 S resetbutton
1092 root 1860 S process_monitor
1760 root 1300 R dropbear -b /tmp/loginprompt -r /tmp/root/.ssh/ssh_host_rsa_key -p 22 -s
1761 root 1384 S -sh
1763 root 1384 R ps
root@160nl-switch:~# cat /var/samba/smbpasswd
mrjcd:1000:FB234959C0FD6533543B250A1F7B6542:0234139080B72E1F056B6BF6D01F1AFA:[UX ]:LCT-00000001:
root@160nl-switch:~# cat /tmp/smb.conf
[global]
log level = 1
netbios name = 160nl-switch
server string =
syslog = 10
encrypt passwords = true
preferred master = yes
use sendfile = yes
aio read size = 2048
aio write size = 2048
large readwrite = yes
security = user
mangled names = no
max stat cache size = 64
workgroup =
bind interfaces only = yes
guest account = nobody
map to guest = Bad User
smb passwd file = /var/samba/smbpasswd
private dir = /var/samba
passdb backend = smbpasswd
log file = /var/smbd.log
max log size = 1000
socket options = TCP_NODELAY IPTOS_LOWDELAY SO_SNDBUF=262144 SO_RCVBUF=262144
read raw = yes
write raw = yes
oplocks = yes
max xmit = 65536
dead time = 15
getwd cache = yes
lpq cache time = 30
min protocol = NT1
max protocol = SMB2
printing = none
load printers = No
usershare allow guests = Yes
[160nl-switch]
comment = "160nl-switch"
path = "/mnt/sda1/"
read only = no
guest ok = no
valid users = mrjcd
force user = root
root@160nl-switch:~# exit
Connection to 160nl-switch.mrjcd.com closed.
mrjcd@Deb:~$
both these have samba username & PW and only the 160NL has samba min protocol = NT1 just so I
can get at it with some oldass junk I still have :-)
I just don't know WTH
1231 root 828 S usmbd -c /tmp/smb.conf -u /tmp/smb.db
1232 root 856 S usmbd -c /tmp/smb.conf -u /tmp/smb.db
is doing on the EA8500 :'(
