sha256
37d0b1feb0aa6634c6a572f82170fe1c884638a4931b9646bd81b1da9d942992 *dd-wrt-webupgrade.bin
#
Linksys EA8500
DD-WRT v3.0-r40890 std (09/03/19)
Linux 4.9.190 #463 SMP Fri Aug 30 07:54:55 CEST 2019 armv7l
NO reset -- GUI install over r40854
same main router setup:
WAN is auto DHCP using WAN MAC clone
DHCP-Authoritative
Recursive DNS Resolving (Unbound)
Forced DNS Redirection
Wireless ath0, ath0.1 & ath1
Wireless Security = WPA2 Personal / CCMP-128 (AES) for all three
DNSMasq
34 static DHCP leases
Local DNS
No DNS Rebind
Query DNS in Strict Order
OpenVPN Server
Samba share USB Ext4
Port Range Forwarding
QOS HFSC FQ_CODEL_FAST 51/51
JFFS2 only used for slight altered unbound.conf just so local DNS works while connected to its openVPN server
TCP Congestion Control = bbr
VLAN on its physical port4 together with ath0.1 via br1

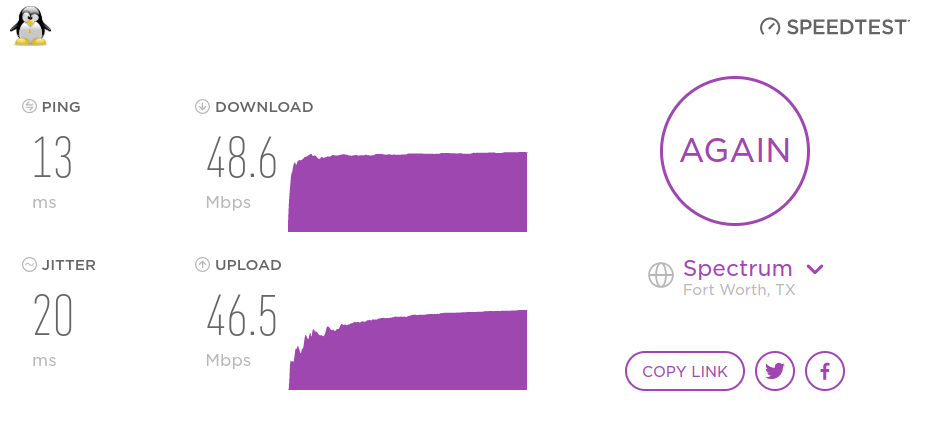

http://mrjcd.speedtestcustom.com/result/c3d27f70-ce3d-11e9-9dc1-7d278851a91a
http://www.dslreports.com/speedtest/53837506
http://www.dslreports.com/speedtest/53837531
set CPU back to 'ondemand' ...everything on this page is in order of what I done so there is more speedtest at bottom of this page
mrjcd@Deb:~$ ssh root@citadel-station-homeworld.mrjcd.com
DD-WRT v3.0-r40890 std (c) 2019 NewMedia-NET GmbH
Release: 09/03/19
Board: Linksys EA8500
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.0 (2019-09-03 01:53:17 CEST) built-in shell (ash)
root@Citadel-Station-Homeworld:~# for CPUFREQ in /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor; do [ -f $CPUFREQ ] || cont
inue; echo -n ondemand > $CPUFREQ; done
root@Citadel-Station-Homeworld:~# dmesg
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.9.190 (root@server2) (gcc version 9.2.0 (OpenWrt GCC 9.2.0 r10880-cb3c4c713d) ) #463 SMP Fri Aug 30 07:54:55 CEST 2019
[ 0.000000] CPU: ARMv7 Processor [512f04d0] revision 0 (ARMv7), cr=10c5787d
[ 0.000000] CPU: div instructions available: patching division code
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, PIPT instruction cache
[ 0.000000] OF: fdt:Machine model: Linksys EA8500 WiFi Router
[ 0.000000] OF: fdt:Ignoring memory range 0x41500000 - 0x42000000
[ 0.000000] Memory policy: Data cache writealloc
[ 0.000000] On node 0 totalpages: 122880
[ 0.000000] free_area_init_node: node 0, pgdat c0b2d080, node_mem_map ddc39000
[ 0.000000] Normal zone: 960 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 122880 pages, LIFO batch:31
[ 0.000000] percpu: Embedded 12 pages/cpu s18892 r8192 d22068 u49152
[ 0.000000] pcpu-alloc: s18892 r8192 d22068 u49152 alloc=12*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 121920
[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 rootfstype=squashfs noinitrd console=ttyHSL1,115200n8 init=/sbin/init rootfstype=squashfs root=31:14
[ 0.000000] PID hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000000] Memory: 478236K/491520K available (5120K kernel code, 183K rwdata, 1028K rodata, 1024K init, 407K bss, 13284K reserved, 0K cma-reserved, 0K highmem)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB)
[ 0.000000] vmalloc : 0xde800000 - 0xff800000 ( 528 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xde000000 ( 480 MB)
[ 0.000000] pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
[ 0.000000] modules : 0xbf000000 - 0xbfe00000 ( 14 MB)
[ 0.000000] .text : 0xc0208000 - 0xc0800000 (6112 kB)
[ 0.000000] .init : 0xc0a00000 - 0xc0b00000 (1024 kB)
[ 0.000000] .data : 0xc0b00000 - 0xc0b2dd68 ( 184 kB)
[ 0.000000] .bss : 0xc0b2f000 - 0xc0b94ebc ( 408 kB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[ 0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2
[ 0.000000] NR_IRQS:16 nr_irqs:16 16
[ 0.000000] clocksource: dg_timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 305801671480 ns
[ 0.000006] sched_clock: 32 bits at 6MHz, resolution 160ns, wraps every 343597383600ns
[ 0.000018] Switching to timer-based delay loop, resolution 160ns
[ 0.000189] Calibrating delay loop (skipped), value calculated using timer frequency.. 12.50 BogoMIPS (lpj=62500)
[ 0.000211] pid_max: default: 32768 minimum: 301
[ 0.000320] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000334] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000912] CPU: Testing write buffer coherency: ok
[ 0.001218] Setting up static identity map for 0x42300000 - 0x4230003c
[ 0.004426] Brought up 2 CPUs
[ 0.004444] SMP: Total of 2 processors activated (25.00 BogoMIPS).
[ 0.004455] CPU: All CPU(s) started in SVC mode.
[ 0.016826] VFP support v0.3: implementor 51 architecture 64 part 4d variant 2 rev 0
[ 0.017015] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.017040] futex hash table entries: 512 (order: 3, 32768 bytes)
[ 0.017127] pinctrl core: initialized pinctrl subsystem
[ 0.018240] NET: Registered protocol family 16
[ 0.018584] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 0.041403] cpuidle: using governor ladder
[ 0.094217] msm_bus_fabric_init_driver
[ 0.095287] pps_core: LinuxPPS API ver. 1 registered
[ 0.095304] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.095335] PTP clock support registered
[ 0.096891] clocksource: Switched to clocksource dg_timer
[ 0.101068] NET: Registered protocol family 2
[ 0.101696] TCP established hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.101736] TCP bind hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.101789] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.101842] UDP hash table entries: 256 (order: 1, 8192 bytes)
[ 0.101864] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[ 0.102034] NET: Registered protocol family 1
[ 0.102090] PCI: CLS 0 bytes, default 64
[ 0.106452] workingset: timestamp_bits=30 max_order=17 bucket_order=0
[ 0.115465] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.121755] cryptodev: driver 1.9 loaded.
[ 0.121792] io scheduler noop registered
[ 0.121806] io scheduler deadline registered (default)
[ 0.123520] 1b500000.pci supply vdda not found, using dummy regulator
[ 0.123632] 1b500000.pci supply vdda_phy not found, using dummy regulator
[ 0.123714] 1b500000.pci supply vdda_refclk not found, using dummy regulator
[ 0.124492] OF: PCI: host bridge /soc/pci@1b500000 ranges:
[ 0.124533] OF: PCI: IO 0x0fe00000..0x0fefffff -> 0x0fe00000
[ 0.124559] OF: PCI: MEM 0x08000000..0x0fdfffff -> 0x08000000
[ 0.227267] qcom-pcie 1b500000.pci: link up
[ 0.227459] qcom-pcie 1b500000.pci: PCI host bridge to bus 0000:00
[ 0.227482] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 0.227502] pci_bus 0000:00: root bus resource [io 0x0000-0xfffff] (bus address [0xfe00000-0xfefffff])
[ 0.227518] pci_bus 0000:00: root bus resource [mem 0x08000000-0x0fdfffff]
[ 0.227569] pci 0000:00:00.0: [17cb:0101] type 01 class 0x060400
[ 0.227722] pci 0000:00:00.0: supports D1
[ 0.227731] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 0.228016] PCI: bus0: Fast back to back transfers disabled
[ 0.228345] pci 0000:01:00.0: [168c:0040] type 00 class 0x028000
[ 0.228592] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]
[ 0.229749] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
[ 0.230395] PCI: bus1: Fast back to back transfers disabled
[ 0.230676] pci 0000:00:00.0: BAR 14: assigned [mem 0x08000000-0x081fffff]
[ 0.230705] pci 0000:01:00.0: BAR 0: assigned [mem 0x08000000-0x081fffff 64bit]
[ 0.230842] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 0.230866] pci 0000:00:00.0: bridge window [mem 0x08000000-0x081fffff]
[ 0.231276] aer 0000:00:00.0:pcie002: service driver aer loaded
[ 0.231733] 1b700000.pci supply vdda not found, using dummy regulator
[ 0.231844] 1b700000.pci supply vdda_phy not found, using dummy regulator
[ 0.231926] 1b700000.pci supply vdda_refclk not found, using dummy regulator
[ 0.232688] OF: PCI: host bridge /soc/pci@1b700000 ranges:
[ 0.232725] OF: PCI: IO 0x31e00000..0x31efffff -> 0x31e00000
[ 0.232747] OF: PCI: MEM 0x2e000000..0x31dfffff -> 0x2e000000
[ 0.337262] qcom-pcie 1b700000.pci: link up
[ 0.337435] qcom-pcie 1b700000.pci: PCI host bridge to bus 0001:00
[ 0.337453] pci_bus 0001:00: root bus resource [bus 00-ff]
[ 0.337468] pci_bus 0001:00: root bus resource [mem 0x2e000000-0x31dfffff]
[ 0.337513] pci 0001:00:00.0: [17cb:0101] type 01 class 0x060400
[ 0.337643] pci 0001:00:00.0: supports D1
[ 0.337652] pci 0001:00:00.0: PME# supported from D0 D1 D3hot
[ 0.337915] PCI: bus0: Fast back to back transfers disabled
[ 0.338219] pci 0001:01:00.0: [168c:0040] type 00 class 0x028000
[ 0.338444] pci 0001:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]
[ 0.339514] pci 0001:01:00.0: PME# supported from D0 D3hot D3cold
[ 0.340126] PCI: bus1: Fast back to back transfers disabled
[ 0.340498] pci 0001:00:00.0: BAR 14: assigned [mem 0x2e000000-0x2e1fffff]
[ 0.340522] pci 0001:01:00.0: BAR 0: assigned [mem 0x2e000000-0x2e1fffff 64bit]
[ 0.340645] pci 0001:00:00.0: PCI bridge to [bus 01-ff]
[ 0.340665] pci 0001:00:00.0: bridge window [mem 0x2e000000-0x2e1fffff]
[ 0.341029] aer 0001:00:00.0:pcie002: service driver aer loaded
[ 0.341846] deviceless supply s1b not found, using dummy regulator
[ 0.343443] L2 @ QSB rate. Forcing new rate.
[ 0.343611] L2 @ 800000 KHz
[ 0.343722] CPU0 @ 800000 KHz
[ 0.343731] CPU1 @ QSB rate. Forcing new rate.
[ 0.343851] CPU1 @ 800000 KHz
[ 0.345909] gsbi 16300000.gsbi: GSBI port protocol: 6 crci: 0
[ 0.347643] serial8250_init
[ 0.347657] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[ 0.348641] msm_serial 16340000.serial: msm_serial: detected port #0
[ 0.348723] msm_serial 16340000.serial: uartclk = 7372800
[ 0.348777] 16340000.serial: ttyMSM0 at MMIO 0x16340000 (irq = 168, base_baud = 460800) is a MSM
[ 0.348809] msm_serial: console setup on port #0
[ 1.029975] console [ttyMSM0] enabled
[ 1.034663] msm_serial: driver initialized
[ 1.039938] nand: device found, Manufacturer ID: 0x01, Chip ID: 0xa1
[ 1.042044] nand: AMD/Spansion S34MS01G2
[ 1.048646] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
[ 1.052942] 19 ofpart partitions found on MTD device qcom_nand.0
[ 1.059923] Creating 19 MTD partitions on "qcom_nand.0":
[ 1.066010] 0x000000000000-0x000000040000 : "SBL1"
[ 1.072690] 0x000000040000-0x000000180000 : "MIBIB"
[ 1.078523] 0x000000180000-0x0000002c0000 : "SBL2"
[ 1.083204] 0x0000002c0000-0x000000540000 : "SBL3"
[ 1.086166] random: fast init done
[ 1.094060] 0x000000540000-0x000000660000 : "DDRCONFIG"
[ 1.096469] 0x000000660000-0x000000780000 : "SSD"
[ 1.101303] 0x000000780000-0x000000a00000 : "TZ"
[ 1.108020] 0x000000a00000-0x000000c80000 : "RPM"
[ 1.112704] 0x000000c80000-0x000000dc0000 : "art"
[ 1.115539] 0x000000dc0000-0x000000ec0000 : "APPSBL"
[ 1.119995] 0x000000ec0000-0x000000f00000 : "u_env"
[ 1.123837] 0x000000f00000-0x000000f40000 : "s_env"
[ 1.128463] 0x000000f40000-0x000000f80000 : "devinfo"
[ 1.133294] 0x000000f80000-0x000003780000 : "linux"
[ 1.195340] 0x000001280000-0x000003780000 : "rootfs"
[ 1.249158] mtd: partition "rootfs" set to be root filesystem
[ 1.249200] 0x000003780000-0x000005f40000 : "linux2"
[ 1.310341] 0x000003a80000-0x000005f40000 : "rootfs2"
[ 1.362773] 0x000005f40000-0x000005f80000 : "nvram"
[ 1.363950] 0x000005f80000-0x000008000000 : "ddwrt"
[ 1.389865] random: crng init done
[ 1.415264] libphy: GPIO Bitbanged MDIO: probed
[ 1.418577] libphy: Fixed MDIO Bus: probed
[ 1.439543] switch0: Atheros AR8337 rev. 2 switch registered on gpio-0
[ 2.214379] stmmac - user ID: 0x10, Synopsys ID: 0x37
[ 2.214405] Ring mode enabled
[ 2.218492] DMA HW capability register supported
[ 2.221356] Enhanced/Alternate descriptors
[ 2.226994] Enabled extended descriptors
[ 2.230009] RX Checksum Offload Engine supported
[ 2.234121] COE Type 2
[ 2.238880] TX Checksum insertion supported
[ 2.241065] Wake-Up On Lan supported
[ 2.245583] eth%d: device MAC address 00:06:3b:01:41:00
[ 2.249222] Enable RX Mitigation via HW Watchdog Timer
[ 2.255433] stmmac - user ID: 0x10, Synopsys ID: 0x37
[ 2.259474] Ring mode enabled
[ 2.264587] DMA HW capability register supported
[ 2.267621] Enhanced/Alternate descriptors
[ 2.273183] Enabled extended descriptors
[ 2.276142] RX Checksum Offload Engine supported
[ 2.280367] COE Type 2
[ 2.284992] TX Checksum insertion supported
[ 2.287339] Wake-Up On Lan supported
[ 2.291769] eth%d: device MAC address 00:03:7f:ba:db:02
[ 2.295328] Enable RX Mitigation via HW Watchdog Timer
[ 2.301188] i2c /dev entries driver
[ 2.306147] Calibration not found.
[ 2.310150] CPUidle arm: CPU 0 failed to init idle CPU ops
[ 2.312983] GACT probability NOT on
[ 2.318055] Mirror/redirect action on
[ 2.321391] Simple TC action Loaded
[ 2.325738] netem: version 1.3
[ 2.328596] u32 classifier
[ 2.331609] Performance counters on
[ 2.334300] input device check on
[ 2.338097] Actions configured
[ 2.341860] Netfilter messages via NETLINK v0.30.
[ 2.345400] nf_conntrack version 0.5.0 (8192 buckets, 32768 max)
[ 2.350644] nf_conntrack_rtsp v0.7 loading
[ 2.356191] xt_time: kernel timezone is -0000
[ 2.359991] ip_set: protocol 6
[ 2.364522] gre: GRE over IPv4 demultiplexor driver
[ 2.367762] nf_nat_rtsp v0.7 loading
[ 2.372085] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 2.376070] NET: Registered protocol family 17
[ 2.381318] Bridge firewalling registered
[ 2.385433] 8021q: 802.1Q VLAN Support v1.8
[ 2.389732] Registering SWP/SWPB emulation handler
[ 2.403220] qcom_rpm 108000.rpm: RPM firmware 3.0.16777342
[ 2.421934] s1a: Bringing 0uV into 1050000-1050000uV
[ 2.422191] s1b: Bringing 0uV into 1050000-1050000uV
[ 2.426169] s2a: Bringing 0uV into 800000-800000uV
[ 2.431220] s2b: Bringing 0uV into 800000-800000uV
[ 2.439327] trying to register driver cpufreq-dt
[ 2.441825] searching for nvram
[ 2.445075] nvram size = 262144
[ 2.490590] no valid UBI magic found inside mtd13
[ 2.490644] hctosys: unable to open rtc device (rtc0)
[ 2.500040] VFS: Mounted root (squashfs filesystem) readonly on device 31:14.
[ 2.501607] Freeing unused kernel memory: 1024K
[ 5.473523] Loading modules backported from Linux version wireless-drivers-next-for-davem-2017-09-01-0-geb464d4a8d09
[ 5.473555] Backport generated by backports.git backports-20160324-111-g97b8d7c4
[ 6.038659] ath10k_pci 0000:01:00.0: enabling device (0140 -> 0142)
[ 6.039313] ath10k_pci 0000:01:00.0: pci irq msi oper_irq_mode 2 irq_mode 0 reset_mode 0
[ 6.198677] ath10k_pci 0000:01:00.0: Direct firmware load for ath10k/QCA99X0/hw2.0/firmware-6.bin failed with error -2
[ 6.198712] ath10k_pci 0000:01:00.0: Falling back to user helper
[ 6.539336] ath10k_pci 0000:01:00.0: qca99x0 hw2.0 target 0x01000000 chip_id 0x003801ff sub 168c:0002
[ 6.539379] ath10k_pci 0000:01:00.0: kconfig debug 1 debugfs 1 tracing 0 dfs 0 testmode 0
[ 6.551079] ath10k_pci 0000:01:00.0: firmware ver 10.4-3.5.3-00050 api 5 features no-p2p,mfp,peer-flow-ctrl,allows-mesh-bcast,no-ps crc32 5ae23169
[ 6.620536] ath10k_pci 0000:01:00.0: board_file api 2 bmi_id 1:2 crc32 792a3d38
[ 7.846121] ath10k_pci 0000:01:00.0: 10.4 wmi init: vdevs: 16 peers: 528 tid: 102
[ 7.920296] ath10k_pci 0000:01:00.0: htt-ver 2.2 wmi-op 6 htt-op 4 cal pre-cal-file max-sta 512 raw 0 hwcrypto 1
[ 7.999053] ath: EEPROM regdomain: 0x0
[ 7.999060] ath: EEPROM indicates default country code should be used
[ 7.999064] ath: doing EEPROM country->regdmn map search
[ 7.999073] ath: country maps to regdmn code: 0x3a
[ 7.999080] ath: Country alpha2 being used: US
[ 7.999085] ath: Regpair used: 0x3a
[ 8.004009] ath10k_pci 0001:01:00.0: enabling device (0140 -> 0142)
[ 8.004659] ath10k_pci 0001:01:00.0: pci irq msi oper_irq_mode 2 irq_mode 0 reset_mode 0
[ 8.168441] ath10k_pci 0001:01:00.0: Direct firmware load for ath10k/QCA99X0/hw2.0/firmware-6.bin failed with error -2
[ 8.168478] ath10k_pci 0001:01:00.0: Falling back to user helper
[ 8.179309] ath10k_pci 0001:01:00.0: qca99x0 hw2.0 target 0x01000000 chip_id 0x003801ff sub 168c:0002
[ 8.184197] ath10k_pci 0001:01:00.0: kconfig debug 1 debugfs 1 tracing 0 dfs 0 testmode 0
[ 8.196463] ath10k_pci 0001:01:00.0: firmware ver 10.4-3.5.3-00050 api 5 features no-p2p,mfp,peer-flow-ctrl,allows-mesh-bcast,no-ps crc32 5ae23169
[ 8.260663] ath10k_pci 0001:01:00.0: board_file api 2 bmi_id 1:1 crc32 792a3d38
[ 9.551398] ath10k_pci 0001:01:00.0: 10.4 wmi init: vdevs: 16 peers: 528 tid: 102
[ 9.623166] ath10k_pci 0001:01:00.0: htt-ver 2.2 wmi-op 6 htt-op 4 cal pre-cal-file max-sta 512 raw 0 hwcrypto 1
[ 9.708505] ath: EEPROM regdomain: 0x0
[ 9.708510] ath: EEPROM indicates default country code should be used
[ 9.708513] ath: doing EEPROM country->regdmn map search
[ 9.708519] ath: country maps to regdmn code: 0x3a
[ 9.708524] ath: Country alpha2 being used: US
[ 9.708528] ath: Regpair used: 0x3a
[ 10.747990] dwmac1000: Master AXI performs any burst length
[ 10.748051] ipq806x-gmac-dwmac 37200000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
[ 10.752616] ipq806x-gmac-dwmac 37200000.ethernet eth0: registered PTP clock
[ 10.870483] dwmac1000: Master AXI performs any burst length
[ 10.870525] ipq806x-gmac-dwmac 37400000.ethernet eth1: IEEE 1588-2008 Advanced Timestamp supported
[ 10.874968] ipq806x-gmac-dwmac 37400000.ethernet eth1: registered PTP clock
[ 10.998020] usbcore: registered new interface driver usbfs
[ 10.998118] usbcore: registered new interface driver hub
[ 11.002438] usbcore: registered new device driver usb
[ 11.033773] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 11.042677] ehci-platform: EHCI generic platform driver
[ 11.065095] ehci-pci: EHCI PCI platform driver
[ 11.124052] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 11.465877] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 11.465967] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[ 11.470510] xhci-hcd xhci-hcd.0.auto: hcc params 0x0228f065 hci version 0x100 quirks 0x02010010
[ 11.477903] xhci-hcd xhci-hcd.0.auto: irq 169, io mem 0x11000000
[ 11.487001] hub 1-0:1.0: USB hub found
[ 11.492839] hub 1-0:1.0: 1 port detected
[ 11.496583] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 11.500476] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[ 11.505764] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 11.513764] hub 2-0:1.0: USB hub found
[ 11.521675] hub 2-0:1.0: 1 port detected
[ 11.585901] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 11.585949] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3
[ 11.590534] xhci-hcd xhci-hcd.1.auto: hcc params 0x0228f065 hci version 0x100 quirks 0x02010010
[ 11.597934] xhci-hcd xhci-hcd.1.auto: irq 170, io mem 0x10000000
[ 11.607068] hub 3-0:1.0: USB hub found
[ 11.612860] hub 3-0:1.0: 1 port detected
[ 11.616607] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 11.620500] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4
[ 11.625801] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[ 11.633806] hub 4-0:1.0: USB hub found
[ 11.641695] hub 4-0:1.0: 1 port detected
[ 11.847289] ipq806x-gmac-dwmac 37200000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
[ 11.967251] usb 3-1: new high-speed USB device number 2 using xhci-hcd
[ 16.689564] xhci-hcd xhci-hcd.1.auto: remove, state 1
[ 16.689601] usb usb4: USB disconnect, device number 1
[ 16.694056] xhci-hcd xhci-hcd.1.auto: USB bus 4 deregistered
[ 16.698728] xhci-hcd xhci-hcd.1.auto: remove, state 1
[ 16.704367] usb usb3: USB disconnect, device number 1
[ 16.709381] usb 3-1: USB disconnect, device number 2
[ 16.715198] xhci-hcd xhci-hcd.1.auto: USB bus 3 deregistered
[ 16.739676] xhci-hcd xhci-hcd.0.auto: remove, state 1
[ 16.739713] usb usb2: USB disconnect, device number 1
[ 16.745098] xhci-hcd xhci-hcd.0.auto: USB bus 2 deregistered
[ 16.749230] xhci-hcd xhci-hcd.0.auto: remove, state 1
[ 16.754474] usb usb1: USB disconnect, device number 1
[ 16.764375] xhci-hcd xhci-hcd.0.auto: USB bus 1 deregistered
[ 16.796550] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 16.796631] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[ 16.801166] xhci-hcd xhci-hcd.0.auto: hcc params 0x0228f065 hci version 0x100 quirks 0x02010010
[ 16.808588] xhci-hcd xhci-hcd.0.auto: irq 169, io mem 0x11000000
[ 16.817719] hub 1-0:1.0: USB hub found
[ 16.823449] hub 1-0:1.0: 1 port detected
[ 16.827330] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 16.831064] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[ 16.836437] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 16.844440] hub 2-0:1.0: USB hub found
[ 16.852342] hub 2-0:1.0: 1 port detected
[ 16.856133] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 16.859960] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3
[ 16.865400] xhci-hcd xhci-hcd.1.auto: hcc params 0x0228f065 hci version 0x100 quirks 0x02010010
[ 16.872806] xhci-hcd xhci-hcd.1.auto: irq 170, io mem 0x10000000
[ 16.881968] hub 3-0:1.0: USB hub found
[ 16.887735] hub 3-0:1.0: 1 port detected
[ 16.891495] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 16.895301] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4
[ 16.900767] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[ 16.908680] hub 4-0:1.0: USB hub found
[ 16.916500] hub 4-0:1.0: 1 port detected
[ 16.954319] SCSI subsystem initialized
[ 17.055067] usbcore: registered new interface driver usb-storage
[ 17.128819] libata version 3.00 loaded.
[ 17.188746] ahci 29000000.sata: forcing port_map 0x0 -> 0x1
[ 17.188794] ahci 29000000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
[ 17.193124] ahci 29000000.sata: flags: ncq sntf pm led clo only pmp pio slum part ccc apst
[ 17.203206] scsi host0: ahci
[ 17.210242] ata1: SATA max UDMA/133 mmio [mem 0x29000000-0x2900017f] port 0x100 irq 95
[ 17.247254] usb 3-1: new high-speed USB device number 2 using xhci-hcd
[ 17.418392] usb-storage 3-1:1.0: USB Mass Storage device detected
[ 17.418760] scsi host1: usb-storage 3-1:1.0
[ 17.538716] ata1: SATA link down (SStatus 0 SControl 300)
[ 17.671329] sdhci: Secure Digital Host Controller Interface driver
[ 17.671352] sdhci: Copyright(c) Pierre Ossman
[ 17.685744] sdhci-pltfm: SDHCI platform and OF driver helper
[ 17.885590] lzma_compress: module license 'unspecified' taints kernel.
[ 17.885614] Disabling lock debugging due to kernel taint
[ 17.963848] jffs2: version 2.2. (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) © 2001-2006 Red Hat, Inc.
[ 18.480306] scsi 1:0:0:0: Direct-Access PNY USB 2.0 FD 8.02 PQ: 0 ANSI: 0 CCS
[ 18.484192] sd 1:0:0:0: [sda] 31301631 512-byte logical blocks: (16.0 GB/14.9 GiB)
[ 18.488294] sd 1:0:0:0: [sda] Write Protect is off
[ 18.495221] sd 1:0:0:0: [sda] Mode Sense: 45 00 00 08
[ 18.495603] sd 1:0:0:0: [sda] No Caching mode page found
[ 18.500069] sd 1:0:0:0: [sda] Assuming drive cache: write through
[ 18.512083] sda: sda1
[ 18.516056] sd 1:0:0:0: [sda] Attached SCSI removable disk
[ 18.966861] jffs2: mtd->read(0x100 bytes from 0x2040000) returned ECC error
[ 19.013224] jffs2: notice: (931) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[ 19.034853] jffs2: mtd->read(0x7bc bytes from 0x2040044) returned ECC error
[ 19.097785] jffs2: mtd->read(0x74c bytes from 0x20400b4) returned ECC error
[ 19.098312] jffs2: mtd->read(0x800 bytes from 0x2040000) returned ECC error
[ 19.104039] jffs2: mtd->read(0x44 bytes from 0x2040000) returned ECC error
[ 19.167799] jffs2: mtd->read(0x790 bytes from 0x2040070) returned ECC error
[ 19.168341] jffs2: mtd->read(0x44 bytes from 0x2040070) returned ECC error
[ 19.884001] device br0 entered promiscuous mode
[ 19.946846] br0: port 1(vlan1) entered blocking state
[ 19.946868] br0: port 1(vlan1) entered disabled state
[ 19.951148] device vlan1 entered promiscuous mode
[ 19.955909] device eth0 entered promiscuous mode
[ 19.960696] br0: port 1(vlan1) entered blocking state
[ 19.965289] br0: port 1(vlan1) entered forwarding state
[ 19.977669] device br0 left promiscuous mode
[ 19.980089] device br0 entered promiscuous mode
[ 20.023993] device br0 left promiscuous mode
[ 20.080608] ath: EEPROM regdomain: 0x8348
[ 20.080612] ath: EEPROM indicates we should expect a country code
[ 20.080617] ath: doing EEPROM country->regdmn map search
[ 20.080622] ath: country maps to regdmn code: 0x3a
[ 20.080625] ath: Country alpha2 being used: US
[ 20.080629] ath: Regpair used: 0x3a
[ 20.080634] ath: regdomain 0x8348 dynamically updated by user
[ 20.080649] ath: EEPROM regdomain: 0x8348
[ 20.080652] ath: EEPROM indicates we should expect a country code
[ 20.080655] ath: doing EEPROM country->regdmn map search
[ 20.080659] ath: country maps to regdmn code: 0x3a
[ 20.080662] ath: Country alpha2 being used: US
[ 20.080665] ath: Regpair used: 0x3a
[ 20.080668] ath: regdomain 0x8348 dynamically updated by user
[ 22.232437] EXT4-fs (sda1): Ignoring removed nobh option
[ 22.234649] EXT4-fs (sda1): barriers disabled
[ 22.239792] EXT4-fs (sda1): mounted filesystem with ordered data mode. Opts: init_itable=0,nobarrier,nobh,barrier=0
[ 24.168861] Core CLK 300
[ 24.168881] Mac CLK 150
[ 25.880350] ath10k_pci 0000:01:00.0: 10.4 wmi init: vdevs: 16 peers: 528 tid: 102
[ 26.064833] br0: port 2(ath0) entered blocking state
[ 26.064852] br0: port 2(ath0) entered disabled state
[ 26.069090] device ath0 entered promiscuous mode
[ 28.252709] br0: port 2(ath0) entered blocking state
[ 28.252736] br0: port 2(ath0) entered forwarding state
[ 28.262968] br1: port 1(ath0.1) entered blocking state
[ 28.262988] br1: port 1(ath0.1) entered disabled state
[ 28.267269] device ath0.1 entered promiscuous mode
[ 28.278009] br1: port 1(ath0.1) entered blocking state
[ 28.278068] br1: port 1(ath0.1) entered blocking state
[ 28.381539] Core CLK 300
[ 28.381556] Mac CLK 150
[ 29.706478] ath10k_pci 0001:01:00.0: 10.4 wmi init: vdevs: 16 peers: 528 tid: 102
[ 29.869089] br0: port 3(ath1) entered blocking state
[ 29.869109] br0: port 3(ath1) entered disabled state
[ 29.873309] device ath1 entered promiscuous mode
[ 30.528839] br0: port 3(ath1) entered blocking state
[ 30.528864] br0: port 3(ath1) entered forwarding state
[ 30.943239] IMQ: use 2 as queue number
[ 30.962786] IMQ driver loaded successfully. (numdevs = 16, numqueues = 2, imq_dev_accurate_stats = 1)
[ 30.962813] Hooking IMQ after NAT on PREROUTING.
[ 30.971092] Hooking IMQ before NAT on POSTROUTING.
[ 31.067299] device vlan2 entered promiscuous mode
[ 32.393727] device vlan2 left promiscuous mode
[ 32.499029] jffs2: mtd->read(0x74c bytes from 0x20400b4) returned ECC error
[ 32.499525] jffs2: mtd->read(0x800 bytes from 0x2040000) returned ECC error
[ 32.505262] jffs2: mtd->read(0x44 bytes from 0x2040000) returned ECC error
[ 32.527669] jffs2: mtd->read(0x790 bytes from 0x2040070) returned ECC error
[ 32.528181] jffs2: mtd->read(0x44 bytes from 0x2040070) returned ECC error
[ 33.386010] br1: port 2(vlan4) entered blocking state
[ 33.386034] br1: port 2(vlan4) entered disabled state
[ 33.390317] device vlan4 entered promiscuous mode
[ 33.395140] br1: port 2(vlan4) entered blocking state
[ 33.415330] br1: port 2(vlan4) entered blocking state
[ 34.677525] IMQ driver unloaded successfully.
[ 34.809809] tun: Universal TUN/TAP device driver, 1.6
[ 34.809830] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 35.833125] IMQ: use 2 as queue number
[ 35.840930] IMQ driver loaded successfully. (numdevs = 16, numqueues = 2, imq_dev_accurate_stats = 1)
[ 35.840957] Hooking IMQ after NAT on PREROUTING.
[ 35.849237] Hooking IMQ before NAT on POSTROUTING.
[ 37.737578] IMQ driver unloaded successfully.
[ 37.820667] IMQ: use 2 as queue number
[ 37.827612] IMQ driver loaded successfully. (numdevs = 16, numqueues = 2, imq_dev_accurate_stats = 1)
[ 37.827636] Hooking IMQ after NAT on PREROUTING.
[ 37.835961] Hooking IMQ before NAT on POSTROUTING.
[ 47.864343] br1: port 1(ath0.1) entered learning state
[ 52.864566] br1: port 2(vlan4) entered learning state
[ 62.864752] br1: port 1(ath0.1) entered forwarding state
[ 67.864337] br1: port 2(vlan4) entered forwarding state
root@Citadel-Station-Homeworld:~# tc qdisc ls
qdisc noqueue 0: dev lo root refcnt 2
qdisc fq_codel 0: dev eth0 root refcnt 2 limit 10240p flows 1024 quantum 1514 target 5.0ms interval 100.0ms memory_limit 16Mb ecn
qdisc fq_codel 0: dev eth1 root refcnt 2 limit 10240p flows 1024 quantum 1514 target 5.0ms interval 100.0ms memory_limit 16Mb ecn
qdisc noqueue 0: dev vlan1 root refcnt 2
qdisc hfsc 1: dev vlan2 root refcnt 2 default 30
qdisc fq_codel_fast 30: dev vlan2 parent 1:30 limit 10240p flows 1024 quantum 1518 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 100: dev vlan2 parent 1:100 limit 10240p flows 1024 quantum 1518 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 10: dev vlan2 parent 1:10 limit 10240p flows 1024 quantum 1518 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 40: dev vlan2 parent 1:40 limit 10240p flows 1024 quantum 1518 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 20: dev vlan2 parent 1:20 limit 10240p flows 1024 quantum 1518 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc noqueue 0: dev br0 root refcnt 2
qdisc noqueue 0: dev br1 root refcnt 2
qdisc noqueue 0: dev ath0 root refcnt 2
qdisc noqueue 0: dev ath0.1 root refcnt 2
qdisc noqueue 0: dev ath1 root refcnt 2
qdisc noqueue 0: dev vlan4 root refcnt 2
qdisc fq_codel 0: dev tun2 root refcnt 2 limit 10240p flows 1024 quantum 1500 target 5.0ms interval 100.0ms memory_limit 16Mb ecn
qdisc hfsc 1: dev imq0 root refcnt 3 default 30
qdisc fq_codel_fast 30: dev imq0 parent 1:30 limit 10240p flows 1024 quantum 1500 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 100: dev imq0 parent 1:100 limit 10240p flows 1024 quantum 1500 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 10: dev imq0 parent 1:10 limit 10240p flows 1024 quantum 1500 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 40: dev imq0 parent 1:40 limit 10240p flows 1024 quantum 1500 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
qdisc fq_codel_fast 20: dev imq0 parent 1:20 limit 10240p flows 1024 quantum 1500 target 5.0ms sce_threshold 0us interval 100.0ms memory_limit 32Mb ecn
root@Citadel-Station-Homeworld:~# uptime
06:33:53 up 9 min, load average: 0.02, 0.08, 0.06
root@Citadel-Station-Homeworld:~# date
Tue Sep 3 06:33:59 CDT 2019
root@Citadel-Station-Homeworld:~# exit
Connection to citadel-station-homeworld.mrjcd.com closed.
mrjcd@Deb:~$
http://mrjcd.speedtestcustom.com/result/e9a1f3b0-ce3e-11e9-be82-975e15207ee3
http://www.dslreports.com/speedtest/53837659
http://www.dslreports.com/speedtest/53837701
current clients ...all wireless/Apple clients shown are NOT connected directly to the EA8500 :')
