Linksys E2500
DD-WRT v3.0-r40680 mega (08/19/19)
Linux 3.10.108-d8 #26013 Mon Aug 19 11:17:07 +04 2019 mips
simple VAP WILL NOT fully startup after reboot without some startup workaround: :'(
sleep 10
stopservice nas
wlconf eth1 down
wlconf eth1 up
startservice nas
ok so we do sompin else ---

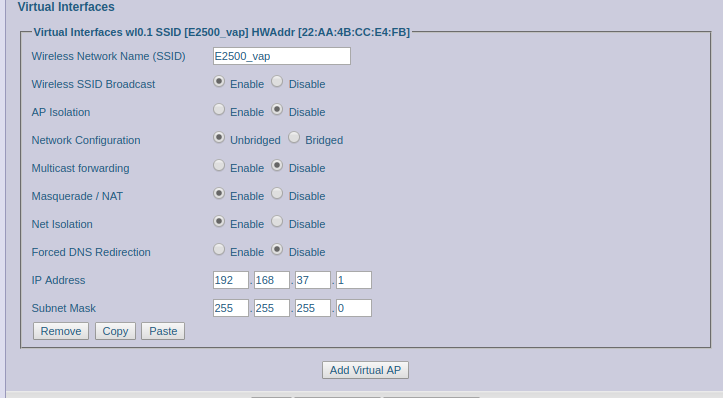

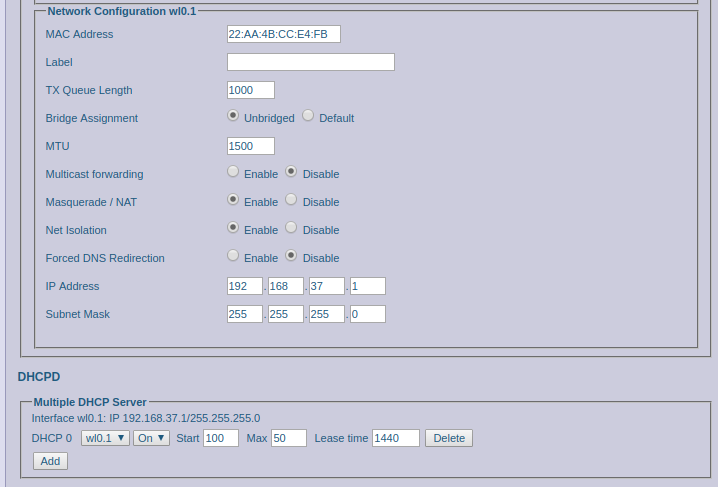

made unbridged wl0.1
with NET Isolation checked and all works great.
Did reboot a couple times and it all still works great with NO startup commands
...YAY!!!
------------------------------
yea, also main net is completely isolated
below is just some log junk :')
mrjcd@Deb:~$ telnet 192.168.1.1
Trying 192.168.1.1...
Connected to 192.168.1.1.
Escape character is '^]'.
DD-WRT v3.0-r40680 mega (c) 2019 NewMedia-NET GmbH
Release: 08/19/19
Board: Linksys E2500
DD-WRT login: root
Password:
==========================================================
___ ___ _ _____ ______ ____ ___
/ _ \/ _ \___| | /| / / _ \/_ __/ _ __|_ / / _ \
/ // / // /___/ |/ |/ / , _/ / / | |/ //_ <_/ // /
/____/____/ |__/|__/_/|_| /_/ |___/____(_)___/
DD-WRT v3.0
http://www.dd-wrt.com
==========================================================
BusyBox v1.31.0 (2019-08-19 11:16:40 +04) built-in shell (ash)
root@DD-WRT:~# dmesg
Linux version 3.10.108-d8 (root@linux) (gcc version 8.2.0 (OpenWrt GCC 8.2.0 r7577-d14647dd59) ) #26013 Mon Aug 19 11:17:07 +04 2019
CPU0 revision is: 00019749 (MIPS 74Kc)
Found ST compatible serial flash with 128 64KB blocks; total size 8MB
found nvram at 7E0000
map 60K cfe nvram at 801000
copy 61440 bytes as cfe nvram
Determined physical RAM map:
memory: 04000000 @ 00000000 (usable)
Zone ranges:
Normal [mem 0x00000000-0x03ffffff]
HighMem empty
Movable zone start for each node
Early memory node ranges
node 0: [mem 0x00000000-0x03ffffff]
On node 0 totalpages: 16384
free_area_init_node: node 0, pgdat 805bbbd0, node_mem_map 81000000
Normal zone: 128 pages used for memmap
Normal zone: 0 pages reserved
Normal zone: 16384 pages, LIFO batch:3
Primary instruction cache 32kB, 4-way, VIPT, I-cache aliases, linesize 32 bytes.
Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
pcpu-alloc: [0] 0
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256
Kernel command line: console=ttyS0,115200 root=1f02 rootfstype=squashfs noinitrd init=/bin/sh
PID hash table entries: 256 (order: -2, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Writing ErrCtl register=00000000
Readback ErrCtl register=00000000
Memory: 57948k/65536k available (4662k kernel code, 7588k reserved, 1618k data, 304k init, 0k highmem)
NR_IRQS:128
CPU: BCM5357 rev 2 at 300 MHz
bcm947xx_clockevent_set_mode: 1
bcm947xx_clockevent_set_mode: 3
console [ttyS0] enabled
Calibrating delay loop... 148.88 BogoMIPS (lpj=744448)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
NET: Registered protocol family 16
Can't analyze schedule() prologue at 800094fc
bio: create slab <bio-0> at 0
PCI: no core
PCI: no core
PCI: scanning bus 0
PCI host bridge to bus 0000:00
pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
pci_bus 0000:00: root bus resource [mem 0x00000000-0xffffffff]
pci_bus 0000:00: root bus resource [bus 00-ff]
pci 0000:00:00.0: [14e4:0800] type 00 class 0x050100
pci 0000:00:00.0: reg 10: [mem 0x18000000-0x18000fff]
pci 0000:00:00.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:01.0: [14e4:4347] type 00 class 0x028000
pci 0000:00:01.0: reg 10: [mem 0x18001000-0x18001fff]
pci 0000:00:01.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:02.0: [14e4:4715] type 00 class 0x020000
pci 0000:00:02.0: reg 10: [mem 0x18002000-0x18002fff]
pci 0000:00:02.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:04.0: [14e4:471a] type 00 class 0x0c0310
pci 0000:00:04.0: reg 10: [mem 0x18009000-0x18009fff]
pci 0000:00:04.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:04.1: [14e4:471a] type 00 class 0x0c0320
pci 0000:00:04.1: reg 10: [mem 0x18004000-0x18004fff]
pci 0000:00:04.1: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:05.0: [14e4:082e] type 00 class 0x050000
pci 0000:00:05.0: reg 10: [mem 0x18005000-0x18005fff]
pci 0000:00:05.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:06.0: [14e4:4711] type 00 class 0x040100
pci 0000:00:06.0: reg 10: [mem 0x18006000-0x18006fff]
pci 0000:00:06.0: reg 30: [mem 0x00000000-0x000007ff pref]
pci 0000:00:07.0: [14e4:080e] type 00 class 0x050000
pci 0000:00:07.0: reg 10: [mem 0x18007000-0x18007fff]
pci 0000:00:07.0: reg 30: [mem 0x00000000-0x000007ff pref]
PCI: Fixing up bus 0
Switching to clocksource MIPS
NET: Registered protocol family 2
TCP established hash table entries: 512 (order: 0, 4096 bytes)
TCP bind hash table entries: 512 (order: -1, 2048 bytes)
TCP: Hash tables configured (established 512 bind 512)
TCP: reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
PCI: CLS 0 bytes, default 32
squashfs: version 4.0 (2009/01/31) Phillip Lougher
msgmni has been set to 113
io scheduler noop registered (default)
HDLC line discipline maxframe=4096
N_HDLC line discipline registered.
Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x0 (irq = 8) is a U6_16550A
brd: module loaded
pflash: found no supported devices
try to find cfe size up to 8388608
bootloader size: 262144
nvram size: 65536
bcmsflash: Filesystem type: squashfs, size=0x57d2e2
partition size = 5801984
Creating 5 MTD partitions on "bcmsflash":
0x000000000000-0x000000040000 : "cfe"
0x000000040000-0x0000007e0000 : "linux"
0x000000227800-0x0000007b0000 : "rootfs"
mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
mtd: partition "rootfs" set to be root filesystem
0x0000007e0000-0x0000007f0000 : "nvram"
0x0000007b0000-0x0000007e0000 : "ddwrt"
brcmnand: found no supported devices
nflash: found no supported devices
Creating 1 MTD partitions on "bcmsflash":
0x0000007f0000-0x000000800000 : "nvram_cfe"
et_module_init: passivemode set to 0x0
et_module_init: txworkq set to 0x0
et_module_init: et_txq_thresh set to 0xce4
et_module_init: et_rxlazy_timeout set to 0x3e8
et_module_init: et_rxlazy_framecnt set to 0x20
et_module_init: et_rxlazy_dyn_thresh set to 0
et 0000:00:02.0: setting latency timer to 64
ET Corerev 3
eth0: Broadcom BCM47XX 10/100/1000 Mbps Ethernet Controller 7.14.89.21 (r524987)
PPP generic driver version 2.4.2
PPP BSD Compression module registered
PPP Deflate Compression module registered
PPP MPPE Compression module registered
NET: Registered protocol family 24
wl 0000:00:01.0: setting latency timer to 64
Broadcom Watchdog Timer: 0.07 initialized.
u32 classifier
Performance counters on
Actions configured
Netfilter messages via NETLINK v0.30.
nf_conntrack version 0.5.0 (905 buckets, 3620 max)
nf_conntrack_rtsp v0.7 loading
xt_time: kernel timezone is -0000
ip_set: protocol 6
gre: GRE over IPv4 demultiplexor driver
nf_nat_rtsp v0.7 loading
ip_tables: (C) 2000-2006 Netfilter Core Team
TCP: bic registered
TCP: cubic registered
TCP: westwood registered
TCP: highspeed registered
TCP: hybla registered
TCP: htcp registered
TCP: vegas registered
TCP: veno registered
TCP: scalable registered
TCP: lp registered
TCP: yeah registered
TCP: illinois registered
NET: Registered protocol family 17
Bridge firewalling registered
8021q: 802.1Q VLAN Support v1.8
startup nvram driver
found nvram
found cfe nvram
check if nvram copy is required CFE Size is 61440
nvram copy magic is 48534C46
max nvram space = 65536
VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
Freeing unused kernel memory: 304K
device br0 entered promiscuous mode
device vlan1 entered promiscuous mode
device eth0 entered promiscuous mode
br0: port 1(vlan1) entered forwarding state
br0: port 1(vlan1) entered forwarding state
device eth1 entered promiscuous mode
br0: port 2(eth1) entered forwarding state
br0: port 2(eth1) entered forwarding state
device br0 left promiscuous mode
device br0 entered promiscuous mode
device br0 left promiscuous mode
device vlan2 entered promiscuous mode
IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Hooking IMQ before NAT on PREROUTING.
Hooking IMQ after NAT on POSTROUTING.
device vlan2 left promiscuous mode
IMQ driver unloaded successfully.
IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Hooking IMQ before NAT on PREROUTING.
Hooking IMQ after NAT on POSTROUTING.
br0: port 1(vlan1) entered forwarding state
br0: port 2(eth1) entered forwarding state
IMQ driver unloaded successfully.
IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Hooking IMQ before NAT on PREROUTING.
Hooking IMQ after NAT on POSTROUTING.
IMQ driver unloaded successfully.
IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Hooking IMQ before NAT on PREROUTING.
Hooking IMQ after NAT on POSTROUTING.
htb: too many events!
root@DD-WRT:~# lsmod
Module Size Used by
xt_IMQ 656 2
imq 4640 0
nf_nat_pptp 1440 0
nf_conntrack_pptp 3456 1 nf_nat_pptp
nf_nat_proto_gre 816 1 nf_nat_pptp
nf_conntrack_proto_gre 2704 1 nf_conntrack_pptp
xt_physdev 1296 0
sch_cake 29888 0
root@DD-WRT:~# ifconfig
br0 Link encap:Ethernet HWaddr 20:AA:4B:CC:E4:FA
inet addr:192.168.1.1 Bcast:192.168.1.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:10031 errors:0 dropped:0 overruns:0 frame:0
TX packets:11412 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:974082 (951.2 KiB) TX bytes:12752341 (12.1 MiB)
eth0 Link encap:Ethernet HWaddr 20:AA:4B:CC:E4:F8
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:43504 errors:0 dropped:0 overruns:0 frame:0
TX packets:40284 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:35391906 (33.7 MiB) TX bytes:32863869 (31.3 MiB)
Interrupt:4 Base address:0x2000
eth1 Link encap:Ethernet HWaddr 20:AA:4B:CC:E4:FA
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:953
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
Interrupt:3 Base address:0x1000
imq0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
UP RUNNING NOARP MTU:1500 Metric:1
RX packets:18755 errors:0 dropped:0 overruns:0 frame:0
TX packets:18390 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:30
RX bytes:18383120 (17.5 MiB) TX bytes:17835620 (17.0 MiB)
imq1 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
UP RUNNING NOARP MTU:16000 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:11000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MULTICAST MTU:65536 Metric:1
RX packets:10 errors:0 dropped:0 overruns:0 frame:0
TX packets:10 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:984 (984.0 B) TX bytes:984 (984.0 B)
vlan1 Link encap:Ethernet HWaddr 20:AA:4B:CC:E4:F8
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:8833 errors:0 dropped:0 overruns:0 frame:0
TX packets:11412 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:753026 (735.3 KiB) TX bytes:12752341 (12.1 MiB)
vlan2 Link encap:Ethernet HWaddr 20:AA:4B:CC:E4:F9
inet addr:10.72.28.107 Bcast:10.72.28.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:34668 errors:0 dropped:205 overruns:0 frame:0
TX packets:28872 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:33681266 (32.1 MiB) TX bytes:19950392 (19.0 MiB)
wl0.1 Link encap:Ethernet HWaddr 22:AA:4B:CC:E4:FB
inet addr:192.168.37.1 Bcast:192.168.37.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:23398 errors:0 dropped:8 overruns:0 frame:953
TX packets:21709 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:19435527 (18.5 MiB) TX bytes:21395339 (20.4 MiB)
root@DD-WRT:~# ps
PID USER VSZ STAT COMMAND
1 root 1152 S /sbin/init
2 root 0 SW [kthreadd]
3 root 0 SW [ksoftirqd/0]
4 root 0 SW [kworker/0:0]
5 root 0 SW< [kworker/0:0H]
6 root 0 SW [kworker/u2:0]
7 root 0 SW< [khelper]
8 root 0 SW [kworker/u2:1]
83 root 0 SW< [writeback]
86 root 0 SW< [bioset]
87 root 0 SW< [crypto]
89 root 0 SW< [kblockd]
118 root 0 SW [kworker/0:1]
123 root 0 SW [kswapd0]
124 root 0 SW [fsnotify_mark]
731 root 0 SW< [deferwq]
969 root 920 S /sbin/hotplug2 --set-rules-file /etc/hotplug2.rules --persistent
973 root 1620 S watchdog
1223 root 1368 R telnetd
1995 root 892 S cron
2210 root 1360 S udhcpc -i vlan2 -p /var/run/udhcpc.pid -s /tmp/udhcpc -O routes -O msstaticroutes -O staticroutes
2312 root 1604 S nas -P /tmp/nas.wl0lan.pid -H 34954 -l br0 -i eth1 -A -m 128 -k 123456789 -s E2500 -w 4 -g 3600
2314 root 1604 S nas -P /tmp/nas.wl0.1lan.pid -H 34954 -l wl0.1 -i wl0.1 -A -m 128 -k 987654321 -s E2500_vap -w 4 -g 36
2332 root 2496 S httpd -p 80
2444 root 1560 S wland
2445 root 1620 S process_monitor
3178 root 1360 S syslogd -Z -L
3187 root 1360 S klogd
3192 root 1836 S ttraff
3201 root 1168 S dnsmasq -u root -g root --conf-file=/tmp/dnsmasq.conf
3717 root 1364 S -sh
3729 root 1360 R ps
root@DD-WRT:~# cat /var/log/messages
Aug 19 15:44:07 DD-WRT syslog.info syslogd started: BusyBox v1.31.0
Aug 19 15:44:07 DD-WRT user.info : syslogd : daemon successfully started
Aug 19 15:44:07 DD-WRT user.info : pptpd : daemon successfully stopped
Aug 19 15:44:07 DD-WRT user.info : klogd : daemon successfully started
Aug 19 15:44:07 DD-WRT kern.notice kernel: klogd started: BusyBox v1.31.0 (2019-08-19 11:16:40 +04)
Aug 19 15:44:07 DD-WRT kern.notice kernel: Linux version 3.10.108-d8 (root@linux) (gcc version 8.2.0 (OpenWrt GCC 8.2.0 r7577-d14647dd59) ) #26013 Mon Aug 19 11:17:07 +04 2019
Aug 19 15:44:07 DD-WRT kern.info kernel: CPU0 revision is: 00019749 (MIPS 74Kc)
Aug 19 15:44:07 DD-WRT kern.warn kernel: Found ST compatible serial flash with 128 64KB blocks; total size 8MB
Aug 19 15:44:07 DD-WRT kern.notice kernel: found nvram at 7E0000
Aug 19 15:44:07 DD-WRT kern.notice kernel: map 60K cfe nvram at 801000
Aug 19 15:44:07 DD-WRT kern.info kernel: copy 61440 bytes as cfe nvram
Aug 19 15:44:07 DD-WRT kern.info kernel: Determined physical RAM map:
Aug 19 15:44:07 DD-WRT kern.info kernel: memory: 04000000 @ 00000000 (usable)
Aug 19 15:44:07 DD-WRT kern.warn kernel: Zone ranges:
Aug 19 15:44:07 DD-WRT kern.warn kernel: Normal [mem 0x00000000-0x03ffffff]
Aug 19 15:44:07 DD-WRT kern.warn kernel: HighMem empty
Aug 19 15:44:07 DD-WRT kern.warn kernel: Movable zone start for each node
Aug 19 15:44:07 DD-WRT kern.warn kernel: Early memory node ranges
Aug 19 15:44:07 DD-WRT kern.warn kernel: node 0: [mem 0x00000000-0x03ffffff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: On node 0 totalpages: 16384
Aug 19 15:44:07 DD-WRT kern.debug kernel: free_area_init_node: node 0, pgdat 805bbbd0, node_mem_map 81000000
Aug 19 15:44:07 DD-WRT kern.debug kernel: Normal zone: 128 pages used for memmap
Aug 19 15:44:07 DD-WRT kern.debug kernel: Normal zone: 0 pages reserved
Aug 19 15:44:07 DD-WRT kern.debug kernel: Normal zone: 16384 pages, LIFO batch:3
Aug 19 15:44:07 DD-WRT kern.warn kernel: Primary instruction cache 32kB, 4-way, VIPT, I-cache aliases, linesize 32 bytes.
Aug 19 15:44:07 DD-WRT kern.warn kernel: Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
Aug 19 15:44:07 DD-WRT kern.debug kernel: pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
Aug 19 15:44:07 DD-WRT kern.debug kernel: pcpu-alloc: [0] 0
Aug 19 15:44:07 DD-WRT kern.warn kernel: Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256
Aug 19 15:44:07 DD-WRT kern.notice kernel: Kernel command line: console=ttyS0,115200 root=1f02 rootfstype=squashfs noinitrd init=/bin/sh
Aug 19 15:44:07 DD-WRT kern.info kernel: PID hash table entries: 256 (order: -2, 1024 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: Writing ErrCtl register=00000000
Aug 19 15:44:07 DD-WRT kern.info kernel: Readback ErrCtl register=00000000
Aug 19 15:44:07 DD-WRT kern.info kernel: Memory: 57948k/65536k available (4662k kernel code, 7588k reserved, 1618k data, 304k init, 0k highmem)
Aug 19 15:44:07 DD-WRT kern.info kernel: NR_IRQS:128
Aug 19 15:44:07 DD-WRT kern.info kernel: CPU: BCM5357 rev 2 at 300 MHz
Aug 19 15:44:07 DD-WRT kern.crit kernel: bcm947xx_clockevent_set_mode: 1
Aug 19 15:44:07 DD-WRT kern.crit kernel: bcm947xx_clockevent_set_mode: 3
Aug 19 15:44:07 DD-WRT kern.info kernel: console [ttyS0] enabled
Aug 19 15:44:07 DD-WRT kern.info kernel: Calibrating delay loop... 148.88 BogoMIPS (lpj=744448)
Aug 19 15:44:07 DD-WRT kern.info kernel: pid_max: default: 32768 minimum: 301
Aug 19 15:44:07 DD-WRT kern.info kernel: Mount-cache hash table entries: 512
Aug 19 15:44:07 DD-WRT kern.info kernel: NET: Registered protocol family 16
Aug 19 15:44:07 DD-WRT kern.warn kernel: Can't analyze schedule() prologue at 800094fc
Aug 19 15:44:07 DD-WRT kern.info kernel: bio: create slab <bio-0> at 0
Aug 19 15:44:07 DD-WRT kern.warn kernel: PCI: no core
Aug 19 15:44:07 DD-WRT kern.warn kernel: PCI: no core
Aug 19 15:44:07 DD-WRT kern.info kernel: PCI: scanning bus 0
Aug 19 15:44:07 DD-WRT kern.info kernel: PCI host bridge to bus 0000:00
Aug 19 15:44:07 DD-WRT kern.info kernel: pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
Aug 19 15:44:07 DD-WRT kern.info kernel: pci_bus 0000:00: root bus resource [mem 0x00000000-0xffffffff]
Aug 19 15:44:07 DD-WRT kern.info kernel: pci_bus 0000:00: root bus resource [bus 00-ff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:00.0: [14e4:0800] type 00 class 0x050100
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:00.0: reg 10: [mem 0x18000000-0x18000fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:00.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:01.0: [14e4:4347] type 00 class 0x028000
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:01.0: reg 10: [mem 0x18001000-0x18001fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:01.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:02.0: [14e4:4715] type 00 class 0x020000
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:02.0: reg 10: [mem 0x18002000-0x18002fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:02.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.0: [14e4:471a] type 00 class 0x0c0310
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.0: reg 10: [mem 0x18009000-0x18009fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.1: [14e4:471a] type 00 class 0x0c0320
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.1: reg 10: [mem 0x18004000-0x18004fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:04.1: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:05.0: [14e4:082e] type 00 class 0x050000
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:05.0: reg 10: [mem 0x18005000-0x18005fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:05.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:06.0: [14e4:4711] type 00 class 0x040100
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:06.0: reg 10: [mem 0x18006000-0x18006fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:06.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:07.0: [14e4:080e] type 00 class 0x050000
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:07.0: reg 10: [mem 0x18007000-0x18007fff]
Aug 19 15:44:07 DD-WRT kern.debug kernel: pci 0000:00:07.0: reg 30: [mem 0x00000000-0x000007ff pref]
Aug 19 15:44:07 DD-WRT kern.warn kernel: PCI: Fixing up bus 0
Aug 19 15:44:07 DD-WRT kern.info kernel: Switching to clocksource MIPS
Aug 19 15:44:07 DD-WRT kern.info kernel: NET: Registered protocol family 2
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP established hash table entries: 512 (order: 0, 4096 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP bind hash table entries: 512 (order: -1, 2048 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: Hash tables configured (established 512 bind 512)
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: reno registered
Aug 19 15:44:07 DD-WRT kern.info kernel: UDP hash table entries: 256 (order: 0, 4096 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
Aug 19 15:44:07 DD-WRT kern.info kernel: NET: Registered protocol family 1
Aug 19 15:44:07 DD-WRT kern.debug kernel: PCI: CLS 0 bytes, default 32
Aug 19 15:44:07 DD-WRT kern.info kernel: squashfs: version 4.0 (2009/01/31) Phillip Lougher
Aug 19 15:44:07 DD-WRT kern.info kernel: msgmni has been set to 113
Aug 19 15:44:07 DD-WRT kern.info kernel: io scheduler noop registered (default)
Aug 19 15:44:07 DD-WRT kern.info kernel: HDLC line discipline maxframe=4096
Aug 19 15:44:07 DD-WRT kern.info kernel: N_HDLC line discipline registered.
Aug 19 15:44:07 DD-WRT kern.info kernel: Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
Aug 19 15:44:07 DD-WRT kern.info kernel: serial8250: ttyS0 at MMIO 0x0 (irq = 8) is a U6_16550A
Aug 19 15:44:07 DD-WRT kern.info kernel: brd: module loaded
Aug 19 15:44:07 DD-WRT kern.err kernel: pflash: found no supported devices
Aug 19 15:44:07 DD-WRT kern.info kernel: try to find cfe size up to 8388608
Aug 19 15:44:07 DD-WRT kern.emerg kernel: bootloader size: 262144
Aug 19 15:44:07 DD-WRT kern.emerg kernel: nvram size: 65536
Aug 19 15:44:07 DD-WRT kern.emerg kernel: bcmsflash: Filesystem type: squashfs, size=0x57d2e2
Aug 19 15:44:07 DD-WRT kern.emerg kernel: partition size = 5801984
Aug 19 15:44:07 DD-WRT kern.notice kernel: Creating 5 MTD partitions on "bcmsflash":
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x000000000000-0x000000040000 : "cfe"
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x000000040000-0x0000007e0000 : "linux"
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x000000227800-0x0000007b0000 : "rootfs"
Aug 19 15:44:07 DD-WRT kern.warn kernel: mtd: partition "rootfs" must either start or end on erase block boundary or be smaller than an erase block -- forcing read-only
Aug 19 15:44:07 DD-WRT kern.notice kernel: mtd: partition "rootfs" set to be root filesystem
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x0000007e0000-0x0000007f0000 : "nvram"
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x0000007b0000-0x0000007e0000 : "ddwrt"
Aug 19 15:44:07 DD-WRT kern.err kernel: brcmnand: found no supported devices
Aug 19 15:44:07 DD-WRT kern.err kernel: nflash: found no supported devices
Aug 19 15:44:07 DD-WRT kern.notice kernel: Creating 1 MTD partitions on "bcmsflash":
Aug 19 15:44:07 DD-WRT kern.notice kernel: 0x0000007f0000-0x000000800000 : "nvram_cfe"
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: passivemode set to 0x0
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: txworkq set to 0x0
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: et_txq_thresh set to 0xce4
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: et_rxlazy_timeout set to 0x3e8
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: et_rxlazy_framecnt set to 0x20
Aug 19 15:44:07 DD-WRT kern.warn kernel: et_module_init: et_rxlazy_dyn_thresh set to 0
Aug 19 15:44:07 DD-WRT kern.debug kernel: et 0000:00:02.0: setting latency timer to 64
Aug 19 15:44:07 DD-WRT kern.info kernel: ET Corerev 3
Aug 19 15:44:07 DD-WRT kern.warn kernel: eth0: Broadcom BCM47XX 10/100/1000 Mbps Ethernet Controller 7.14.89.21 (r524987)
Aug 19 15:44:07 DD-WRT kern.info kernel: PPP generic driver version 2.4.2
Aug 19 15:44:07 DD-WRT kern.info kernel: PPP BSD Compression module registered
Aug 19 15:44:07 DD-WRT kern.info kernel: PPP Deflate Compression module registered
Aug 19 15:44:07 DD-WRT kern.info kernel: PPP MPPE Compression module registered
Aug 19 15:44:07 DD-WRT kern.info kernel: NET: Registered protocol family 24
Aug 19 15:44:07 DD-WRT kern.debug kernel: wl 0000:00:01.0: setting latency timer to 64
Aug 19 15:44:07 DD-WRT kern.info kernel: Broadcom Watchdog Timer: 0.07 initialized.
Aug 19 15:44:07 DD-WRT kern.info kernel: u32 classifier
Aug 19 15:44:07 DD-WRT kern.info kernel: Performance counters on
Aug 19 15:44:07 DD-WRT kern.info kernel: Actions configured
Aug 19 15:44:07 DD-WRT kern.info kernel: Netfilter messages via NETLINK v0.30.
Aug 19 15:44:07 DD-WRT kern.info kernel: nf_conntrack version 0.5.0 (905 buckets, 3620 max)
Aug 19 15:44:07 DD-WRT kern.warn kernel: nf_conntrack_rtsp v0.7 loading
Aug 19 15:44:07 DD-WRT kern.info kernel: xt_time: kernel timezone is -0000
Aug 19 15:44:07 DD-WRT kern.notice kernel: ip_set: protocol 6
Aug 19 15:44:07 DD-WRT kern.info kernel: gre: GRE over IPv4 demultiplexor driver
Aug 19 15:44:07 DD-WRT kern.warn kernel: nf_nat_rtsp v0.7 loading
Aug 19 15:44:07 DD-WRT kern.info kernel: ip_tables: (C) 2000-2006 Netfilter Core Team
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: bic registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: cubic registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: westwood registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: highspeed registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: hybla registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: htcp registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: vegas registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: veno registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: scalable registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: lp registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: yeah registered
Aug 19 15:44:07 DD-WRT kern.info kernel: TCP: illinois registered
Aug 19 15:44:07 DD-WRT kern.info kernel: NET: Registered protocol family 17
Aug 19 15:44:07 DD-WRT kern.notice kernel: Bridge firewalling registered
Aug 19 15:44:07 DD-WRT user.info : ttraff : traffic counter daemon successfully started
Aug 19 15:44:07 DD-WRT kern.info kernel: 8021q: 802.1Q VLAN Support v1.8
Aug 19 15:44:07 DD-WRT kern.info kernel: startup nvram driver
Aug 19 15:44:07 DD-WRT kern.emerg kernel: found nvram
Aug 19 15:44:07 DD-WRT kern.emerg kernel: found cfe nvram
Aug 19 15:44:07 DD-WRT kern.info kernel: check if nvram copy is required CFE Size is 61440
Aug 19 15:44:07 DD-WRT kern.info kernel: nvram copy magic is 48534C46
Aug 19 15:44:07 DD-WRT kern.info kernel: max nvram space = 65536
Aug 19 15:44:07 DD-WRT kern.info kernel: VFS: Mounted root (squashfs filesystem) readonly on device 31:2.
Aug 19 15:44:07 DD-WRT kern.info kernel: Freeing unused kernel memory: 304K
Aug 19 15:44:07 DD-WRT kern.info kernel: device br0 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: device vlan1 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: device eth0 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 1(vlan1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 1(vlan1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: device eth1 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 2(eth1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 2(eth1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: device br0 left promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: device br0 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: device br0 left promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: device vlan2 entered promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ before NAT on PREROUTING.
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ after NAT on POSTROUTING.
Aug 19 15:44:07 DD-WRT kern.info kernel: device vlan2 left promiscuous mode
Aug 19 15:44:07 DD-WRT kern.info kernel: IMQ driver unloaded successfully.
Aug 19 15:44:07 DD-WRT kern.info kernel: IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ before NAT on PREROUTING.
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ after NAT on POSTROUTING.
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 1(vlan1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: br0: port 2(eth1) entered forwarding state
Aug 19 15:44:07 DD-WRT kern.info kernel: IMQ driver unloaded successfully.
Aug 19 15:44:07 DD-WRT kern.info kernel: IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ before NAT on PREROUTING.
Aug 19 15:44:07 DD-WRT kern.info kernel: Hooking IMQ after NAT on POSTROUTING.
Aug 19 15:44:07 DD-WRT user.debug : ttraff: data collection started
Aug 19 15:44:07 DD-WRT user.info : dnsmasq : daemon successfully started
Aug 19 15:44:08 DD-WRT user.info : vpn modules : vpn modules successfully unloaded
Aug 19 15:44:08 DD-WRT user.info : vpn modules : nf_conntrack_proto_gre successfully loaded
Aug 19 15:44:08 DD-WRT user.info : vpn modules : nf_nat_proto_gre successfully loaded
Aug 19 15:44:08 DD-WRT user.info : vpn modules : nf_conntrack_pptp successfully loaded
Aug 19 15:44:09 DD-WRT user.info : vpn modules : nf_nat_pptp successfully loaded
Aug 19 15:44:10 DD-WRT user.info : vpn modules : vpn modules successfully unloaded
Aug 19 15:44:10 DD-WRT user.info : vpn modules : nf_conntrack_proto_gre successfully loaded
Aug 19 15:44:10 DD-WRT user.info : vpn modules : nf_nat_proto_gre successfully loaded
Aug 19 15:44:10 DD-WRT user.info : vpn modules : nf_conntrack_pptp successfully loaded
Aug 19 15:44:10 DD-WRT user.info : vpn modules : nf_nat_pptp successfully loaded
Aug 19 15:44:10 DD-WRT kern.info kernel: IMQ driver unloaded successfully.
Aug 19 15:44:11 DD-WRT user.info : sfe : shortcut forwarding engine successfully stopped
Aug 19 15:44:11 DD-WRT kern.info kernel: IMQ driver loaded successfully. (numdevs = 2, numqueues = 1)
Aug 19 15:44:11 DD-WRT kern.info kernel: Hooking IMQ before NAT on PREROUTING.
Aug 19 15:44:11 DD-WRT kern.info kernel: Hooking IMQ after NAT on POSTROUTING.
Aug 19 15:47:39 DD-WRT kern.warn kernel: htb: too many events!
Aug 19 15:49:31 DD-WRT auth.info login[3675]: root login on 'pts/0'
Aug 19 15:52:41 DD-WRT auth.info login[3717]: root login on 'pts/0'
root@DD-WRT:~# exit
Connection closed by foreign host.
mrjcd@Deb:~$
Ha -- yet NTP is still set Europe/Berlin ... I just can't remember to do everything :')
